Products Description
XPS High-strength Tile Backer Board Waterproof Backing Board Bathroom Wall Floor Bottoming
Backer board is an innovative flooring material for ceramic or natural stone tiles – suitable for all building applications. It can be installed on metal or wooden frames, new brickwork, or renovated surfaces.
Tile backer board is made from a core material of high-performance waterproof and thermally insulating extruded board, with a double-sided composite waterproof mortar and alkali-resistant fiberglass mesh. It is a fast and effective way to achieve both waterproofing and thermal insulation. It is typically used in damp rooms or bathrooms.
The backing board is a high-strength, waterproof extruded polystyrene mortar coated on both sides with a fiberglass mesh embedded in the mortar, enhancing the board's strength and rigidity. Backing Board is suitable for a variety of substrates in new construction or renovation projects. Its high water resistance and corrosion resistance make it an ideal solution for damp areas such as bathroom walls, showers, and wet rooms. For wooden studs, a 10mm board is sufficient, secured with screws and washers.
Material Composition:
This product consists of an extruded polystyrene core, coated on both sides with a mortar mixture embedded with a glass mesh. Surface: The surface is a waterproof polymer mortar embedded with a glass mesh. Color: The surface color is medium gray, with a light blue edge. Appearance: The panels are rectangular but can be cut to any shape. Impact on the Indoor Environment: This board is rated as not emitting any particulate matter, toxic gases, or radiation, and will not have any impact on indoor air or pose a significant health risk.
Key Features:
- Hard and impact-resistant
- Excellent waterproofing and thermal insulation
- Moisture-resistant
- Lightweight, easy to cut, and easy to install
- Suitable for any substrate
- Available in various thicknesses, including 6mm, 12mm, 20mm, 30mm, and 50mm.
- Environmentally friendly
Specification
Technical Performance:
Core Material: Extruded Polystyrene
| Test Items | Test results |
| density | 36 ± 0.02 kg/m3 |
| Thermal conductivity (initial) | 0.034 Watt/mK |
| Thermal conductivity (after 5 years) | 0.036 Watt/mK |
| Compression resistance (10% deviation) | ≥0.25N/mm2 |
| Bending strength | 0.30 ± 0.02 MPa |
| Water absorption rate (immersed in water for two days) | ≦0.2% |
| Linear expansion coefficient | 70 x 10-6 K-1 |
| Moisture permeability | 0.028 ng/Pa.m.s |
Overall plate
| Test Items | Test results |
| Thermal conductivity (after 5 years) | 0.033 - 0.036 Watt/mK |
| Compression strength (10% deviation) | Minimum of 0.30N/mm2 |
| Adhesion strength | 0.3N/mm2 |
| Maximum tile load | 62kg/m2 |
| Water vapor permeability | 3.2m |
| Impact resistance | 3 x 120N/m |
| Flexural stiffness (20mm / 30mm) | 601KNmm2 / 1285 kN/mm 2 |
| Linear expansion coefficient | 30 x 10-6 K-1 |

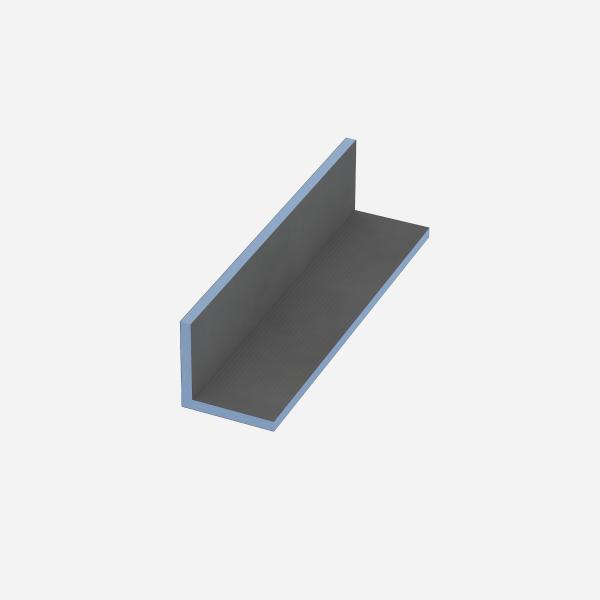

Processed Sample
Applications:
- Floor heating
- Floor and wall insulation
- Partition walls
- Bathtub and washbasin edging
- Pipeline covering
- Swimming pools and saunas
- Its extended product, the floor drain board, is used for same-floor drainage.
